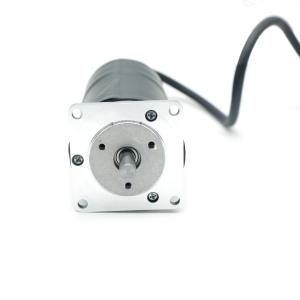

57mm Nema23 bldc motor 24v 3000rpm 0.44N.M IP54 Dustproof Waterproof brushless dc motor
Dustproof Cannot completely prevent dust intrusion, but the amount of dust intruded will not affect the normal operation of the electrical.
Protected against intrusion of splashing water Protected against intrusion of splashed water from all directions.
Low Cogging for Accurate & Extremely Smooth Motion. High Mechanical Stiffness. Delivering Extremely Smooth Motion, Low Cogging & Low Torque Ripple.Request A Quote.View Products.Check Order Status.Models: Brushless DC Motor Series.
Innovative Motor Supplier High Quality Brushless DC Motors.High performance.Types: Automotive Motor, Gear Motor, Vacuum Cleaner Motor, Transaxle, Brushless Motor.
Different ranges of products are available to meet the design needs of many different mechanical systems in a
host of different applications. Other more bespoke adaptations can be developed upon request.
Product Name: | Brushless Motor |
Dielectric Strength: | 500V AC 1minute |
Ambient Temperature: | -20℃~50℃ |
Insulation resistance: | 100MΩ Min.500V DC |
Voltage(VDC): | 24(VDC) |
Power(W): | 138 |
Rated Speed(RPM): | 3000 |
Rated Torque(N.M): | 0.44 |
Rated Current(A): | 1.3 |

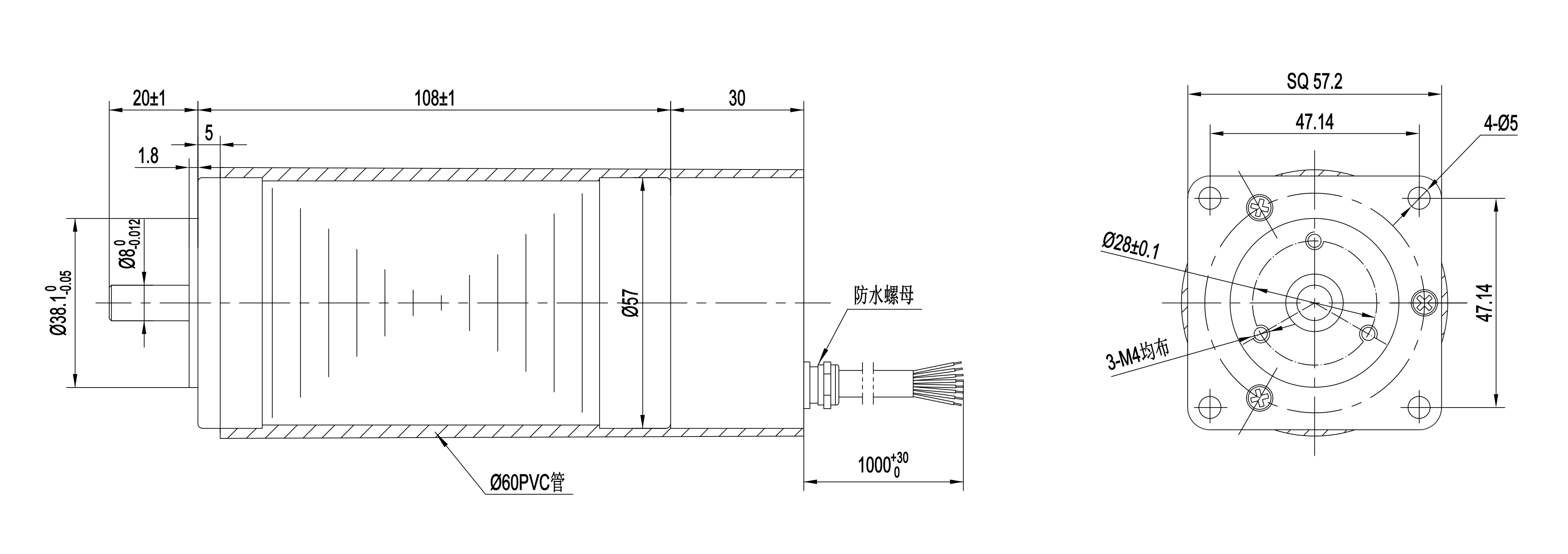

Mechanical Dimension Of Brushless DC Motor
ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.
Production Process
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China
Packing&Delivery
Strictly palletizing and packaging to ensure that the motor will be delivered to the customer in good condition.
Product Tags:
|
|
57mm Nema23 Bldc Motor 24v 3000rpm 0.44N.M IP54 Dustproof Waterproof Brushless Images
|
