Nema23 57BYGX series 2.1A 3.57V 0.1N.m customized special-shaped end cover stepper motor
Stepper motors have the following advantages:
1. When the position is locked, the motor no longer consumes power: the unique "static torque" of the stepping motor (also known as "holding torque", "positioning torque", etc.), when the motor stops at a certain position, it has a certain Locking torque. Although the DC motor can also lock the position through the driver, the motor still consumes power when locked.
2. Small size and long life: The life of a stepper motor usually depends on the life of the bearing, which can reach tens of thousands to tens of thousands of hours. Compared with a DC motor of the same size, the output torque of a stepper motor is greater.
3. Low cost and simple driving: due to the open-loop control, feedback devices such as encoders are omitted, so the system composition is simplified and the cost can be effectively reduced.
| Product Name | Stepper Motor |
| Step Accuracy | ± 5% |
| Dielectric Strength | 500V AC 1minute |
| Ambient Temperature | -20℃~50℃ |
| Insulation resistance | 100MΩ Min.500V DC |
| Step Angle | 1.8° |
| Lead wire | 4 |
| Voltage (V) | 3.57 |
| Inductance(mh/phase) | 3.5 |
| Resistance(ohms) | 1.7 |
| Current (A/Phase) | 2.1 |
| Holding Torque (N.m) | 0.1 |

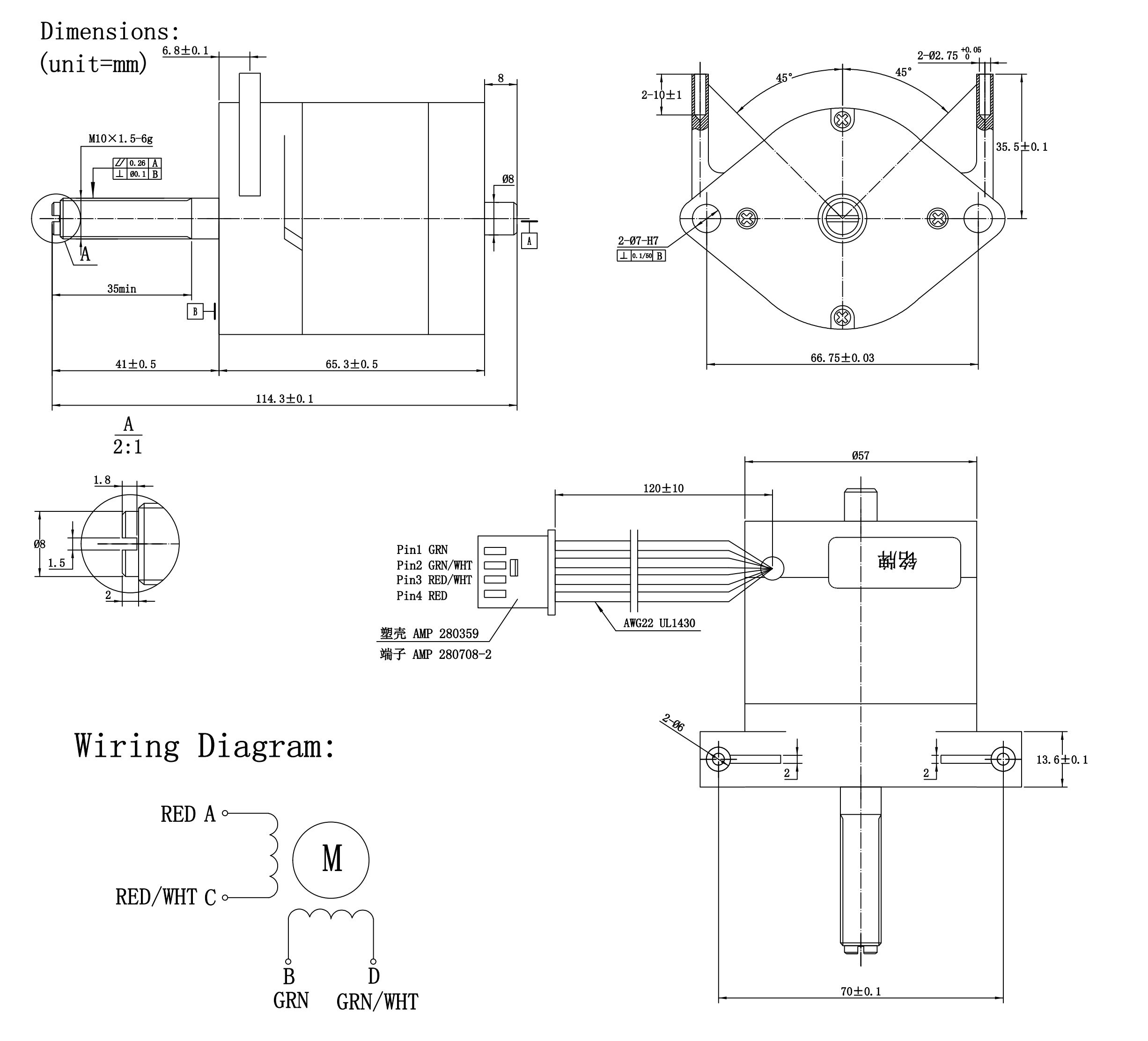

Mechanical Dimension Of Brushless DC Motor
ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.
Production Process
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China
Automatic assembly line
High-end test equipment
Certification
Packing&Delivery
Strictly palletizing and packaging to ensure that the motor will be delivered to the customer in good condition.
