Factory direct sale 85BYGH350A-001 high performance Nema34 hybrid stepper motor
Advantages of stepper motors
1. The angle of motor rotation is proportional to the number of pulses;
2. The motor has the maximum torque when it stops (when the winding is excited);
3. Because the accuracy of each step is 3% to 5%, and the error of one step will not be accumulated to the next step, it has better position accuracy and motion repeatability;
4. Excellent start-stop and reverse response;
5. Because there is no brush, the reliability is high, so the life of the motor only depends on the life of the bearing;
6. The response of the motor is only determined by the digital input pulse, so open-loop control can be used, which makes the structure of the motor relatively simple and cost-effective;
7. Merely connecting the load directly to the shaft of the motor also enables synchronous rotation at very low speeds.
8. Since the speed is proportional to the pulse frequency, it has a relatively wide speed range.
Electrical Specification Of Hybrid Stepper Motor
| Product Name | Hybrid Stepper Motor |
| Step Accuracy | ± 5% |
| Dielectric Strength | 500V AC 1minute |
| Ambient Temperature | -20℃~50℃ |
| Insulation resistance | 100MΩ Min.500VDC |
| Step Angle | 1.2° |
| Lead wire | 3 |
| Voltage (V) | 3.1 |
| Current (A/Phase) | 3.1 |
| Holding Torque (N.M) | 2.0 |

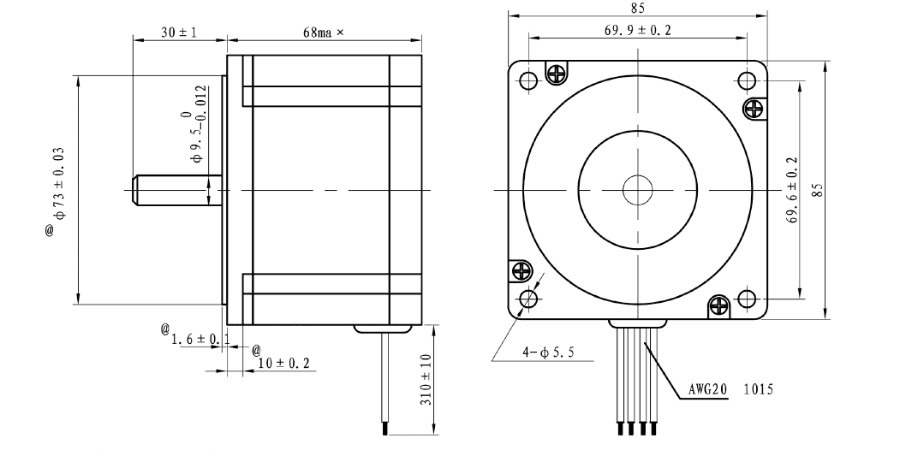

Mechanical Dimension Of Hybrid Stepper Motor
Market Range of Hetai
Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.
From China to Overseas
Europe:France,Germany, Italy, Spain, Norway etc.
North America: USA,Canada
Product Range Of Hetai
Our main products are Stepper Motor, Planetary Gearbox&Gearbox Motor, Brushless DC Motor, Servo Motor.
ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Certificate of Hybrid stepper motor
Stator Winding Machine
Hetai introduced a large number of professional equipment, which greatly improved the production efficiency.
Professional experimental equipment
CNC Center
Packing&Delivery
Strictly palletizing and packaging to ensure that the motor will be delivered to the customer in good condition.
Automatic assembly line
Products Annual Capacity
Hybrid stepper motor 3 million units
Brushless DC motor 2 million units
Servo motor 0.05 million units
Gear 0.2 million units
Since the reorganization in 1998, it has formed a certain scale of production and sales, with an annual production of more than 3 million motors.
