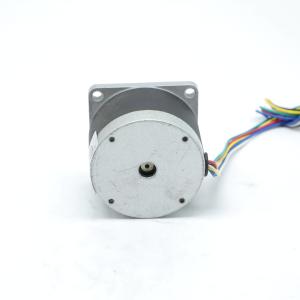

Hetai nema17 high quality 57mm 57BYGN400-11A high torque 5.5V 1.1A 7.8kg.cm stepping motor hybrid stepper motor
A stepper motor is an electric motor whose main feature is that its shaft rotates by performing steps, that is, by moving by a fixed amount of degrees. This feature is obtained thanks to the internal structure of the motor, and allows to know the exact angular position of the shaft by simply counting how may steps have been performed, with no need for a sensor. This feature also makes it fit for a wide range of applications.
Electrical Specification Of Hybrid Stepper Motor
| Product Name | Hybrid Stepper Motor |
| Step Accuracy | ± 5% |
| Dielectric Strength | 500V AC 1minute |
| Ambient Temperature | -20℃~50℃ |
| Insulation resistance | 100MΩ Min.500V DC |
| Step Angle | 1.8° |
| Lead wire | 4 |
| Voltage (V) | 5.5 |
| Current (A/Phase) | 1.1 |
| Holding Torque (Kg.cm) | 7.8 Kg.cm |
Mechanical Dimension Of Hybrid Stepper Motor
Market Range of Hetai
Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.
From China to Overseas
Europe:France,Germany,Italy,Spain, Norway etc.
North America: USA,Canada
Hetai's Customers
A variety of types of stepper motors are available for you to choose, support customization.
Product Range Of Hetai
Our main products are Stepper Motor, Planetary Gearbox&Gearbox Motor, Brushless DC Motor, Servo Motor.
ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
High Quality Material
Stator Winding Machine
Hetai introduced a large number of professional equipment, which greatly improved the production efficiency.
CNC Center
Hetai's professional testing equipment
Packing&Delivery
Strictly palletizing and packaging to ensure that the motor will be delivered to the customer in good condition.
Product Tags:
|
|
Nema17 57BYGN400-11A High Torque Hybrid Stepper Motor 57mm 5.5V 1.1A 7.8kg.Cm Images
|
