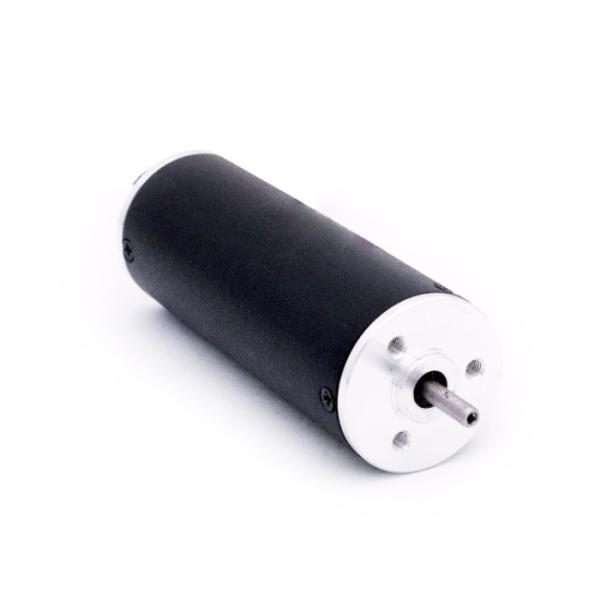

Factory price sale NEMA 11 28BL low noise light weight 4.7W Brushless DC Motor bldc motor
A brushless DC electric motor (BLDC motor or BL motor), also known as an electronically commutated motor (ECM or EC motor) or synchronous DC motor, is a synchronous motor using a direct current (DC) electric power supply. It uses an electronic controller to switch DC currents to the motor windings producing magnetic fields which effectively rotate in space and which the permanent magnet rotor follows. The controller adjusts the phase and amplitude of the DC current pulses to control the speed and torque of the motor. This control system is an alternative to the mechanical commutator (brushes) used in many conventional electric motors.
Electrical Specification Of Brushless DC Motor
| Product Name: | Brushless Motor |
| Dielectric Strength: | 500V AC 1minute |
| Ambient Temperature: | -20℃~50℃ |
| Insulation resistance: | 100MΩ Min.500V DC |
| Voltage(VDC): | 12(VDC) |
| Power(W): | 4.7 |
| Rated Speed(RPM): | 3000 |
| Rated Torque(N.M): | 0.015 |
| Rated Current(A): | 0.60 |

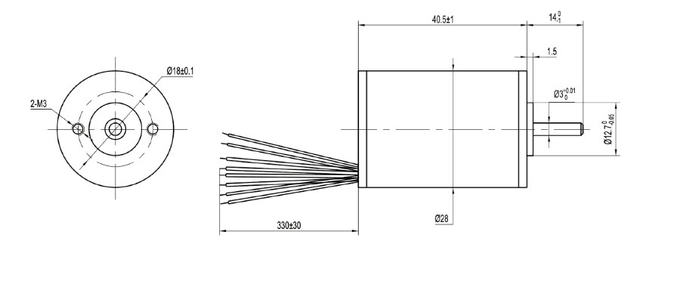

Mechanical Dimension Of Brushless DC Motor
ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.
Market Range Of Hetai
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.
CNC Center Of Hetai
Automatic Winding Machine
Packing&Delivery
Product Tags:
|
|
NEMA 11 28BL Low Noise Brushless DC Motor Lightweight Bldc Motor 4.7W Images
|
