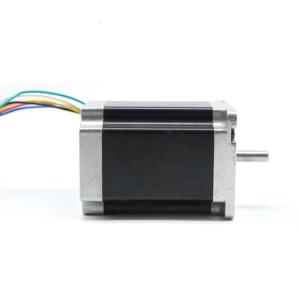

Factory price high performance Nema23 57mm 57BYGH048-11 CE certification stepping motor hybrid stepper motor
Advantages of stepper motors:
①The angle of motor rotation is proportional to the number of pulses;
②The motor has the maximum torque when it stops (when the winding is excited);
③ Since the accuracy of each step is 3% to 5%, and the error of one step will not be accumulated to the next step, it has better position accuracy and motion repeatability;
④Excellent start-stop and reverse response;
⑤ Since there is no brush, the reliability is high, so the life of the motor only depends on the life of the bearing;
⑥ The response of the motor is only determined by the digital input pulse, so open-loop control can be used, which makes the structure of the motor relatively simple and controllable in cost;
⑦Just connect the load directly to the shaft of the motor, and it can also rotate synchronously at a very low speed;
⑧Because the speed is proportional to the pulse frequency, it has a wider speed range.
Electrical Specification Of Hybrid Stepper Motor
| Product Name | Hybrid Stepper Motor |
| Step Accuracy | ± 5% |
| Dielectric Strength | 500V AC 1minute |
| Ambient Temperature | -20℃~50℃ |
| Insulation resistance | 100MΩ Min.500V DC |
| Step Angle | 1.8° |
| Lead wire | 4 |
| Voltage (V) | 6.6 |
| Current (A/Phase) | 0.6 |
| Holding Torque (Kg.cm) | 7.0 Kg.cm |
Mechanical Dimension Of Hybrid Stepper Motor
Product Range Of Hetai
Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.
ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

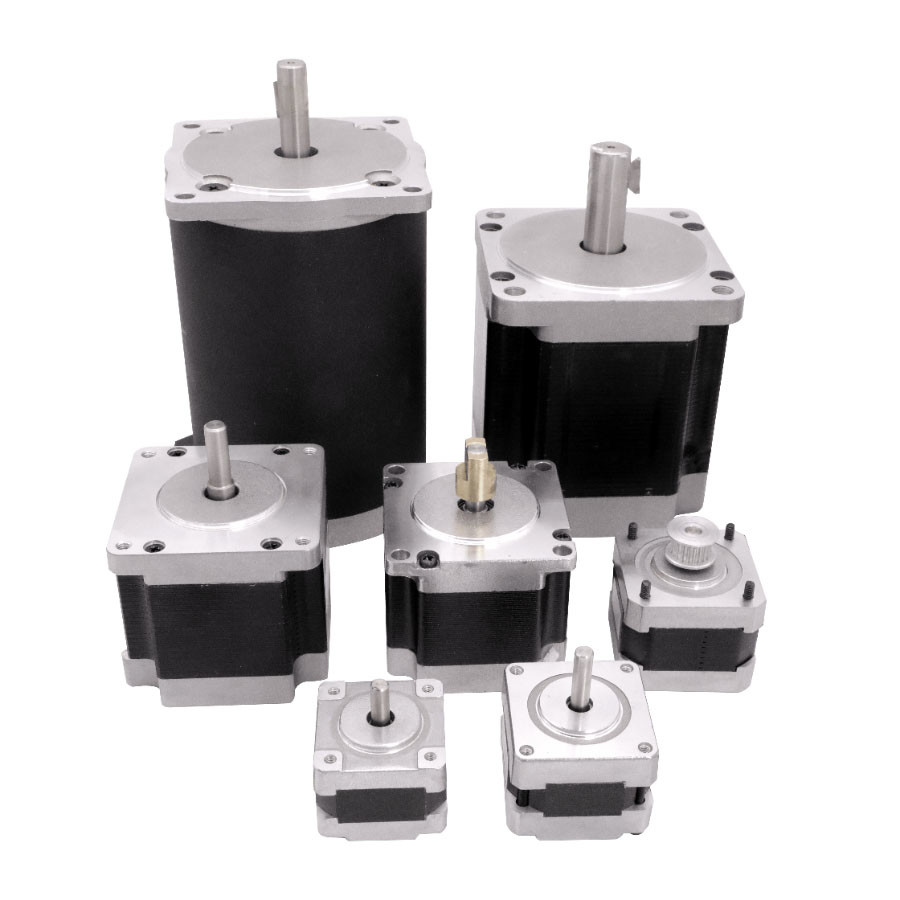

Hetai stepper motor series
A variety of types of stepper motors are available for you to choose, support customization.
Market Range of Hetai
Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.
From China to Overseas
Europe:France,Germany,Italy,Spain, Norway etc.
North America: USA,Canada
High quality material
Stator Winding Machine
Hetai introduced a large number of professional equipment, which greatly improved the production efficiency.
Automatic assembly line
CNC Center
Packing&Delivery
Strictly palletizing and packaging to ensure that the motor will be delivered to the customer in good condition
