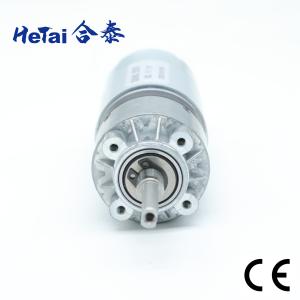

36MM*36 MM 24 V Nema 14 Stable Performance Brushed Gear Motor With CE ROHS ISO
The basic brushed motor is entirely mechanical with no electronics required. Control, to the extent possible, is simple: connect the DC source, and the motor self-starts and then rotates; there is a potential start-up problem due to a small contact angle "dead zone," but that can be solved with some mechanical design adjustments.
To reverse the direction of rotation, just reverse the DC power leads; to adjust the speed (within a limited range), increase or decrease the DC voltage. In general, the speed (revolutions per minute, RPM) of a BDC motor is proportional to the electromotive force (EMF) in its field coil (EMF is the voltage applied to it minus voltage lost due to its resistance), while the torque is proportional to the current being drawn.
Electrical Specification
| SPECIFICATIONS WITH PLANETARY GEAR |
| Rated Voltage | V | 24 |
| Motor Speed | RPM | 5000 |
| Rated Speed | RPM | 66 |
| Reduction RATIO | | 76:1 |
* Products can be customized by special request.
Mechanical Dimension
GEARBOX PART Electrical Specification:
36mm Zinc Alloy
| Housing material | Bearing at output | Radial load(10mm from flange)N | Shaft axial load(N) | Shaft press-fit force max(N) | Radial play of shaft(mm) | Thrust play of shaft(mm) | Backlash at no-load (°) |
| Zinc alloy | Porous bearings | ≤45 | ≤25 | ≤100 | ≤0.08 | ≤0.4 | ≤1.5 |
| Reduction ratio | Rated tolerance torque (Nm) | Max momentary tolerance torque (Nm) | Efficiency% | Length (mm) | Weight(g) | Number of gear trains |
| 1/12 | 0.3 | 1.0 | 81% | 26.8 | 100 | 1 |
Mechanical Dimension
36mm Powder Metallurgy
| Housing material | Bearing at output | Radial load(10mm from flange)N | Shaft axial load(N) | Shaft press-fit force max(N) | Radial play of shaft(mm) | Thrust play of shaft(mm) | Backlash at no-load (°) |
| Powder metallurgy | sleeve bearings | ≤120 | ≤80 | ≤500 | ≤0.03 | ≤0.1 | ≤1.5 |
| Reduction ratio | Rated tolerance torque (Nm) | Max momentary tolerance torque (Nm) | Efficiency% | Length (mm) | Weight(g) | Number of gear trains |
| 1/4 | 0.3 | 1.0 | 81% | 24.8 | 145 | 1 |
| 1/5 |
| 1/16 | 1.2 | 3.5 | 72% | 32.4 | 173 | 2 |
| 1/20 |
| 1/25 |
| 1/53 | 2.5 | 7.5 | 65% | 41.9 | 213 | 3 |
| 1/62 |
| 1/76 |
| 1/94 |
| 1/117 |
Mechanical Dimension
36mm Split Powder Metallurgy
| Housing material | Bearing at output | Radial load(10mm from flange)N | Shaft axial load(N) | Shaft press-fit force max(N) | Radial play of shaft(mm) | Thrust play of shaft(mm) | Backlash at no-load (°) |
| Powder metallurgy | sleeve bearings | ≤35 | ≤25 | ≤100 | ≤0.03 | ≤0.1 | ≤1.5 |
| Reduction ratio | Rated tolerance torque (Nm) | Max momentary tolerance torque (Nm) | Efficiency% | Length (mm) | Weight(g) | Number of gear trains |
| 1/3.7 | 2 | 4 | 81% | 28 | / | 1 |
| 1/5.18 |
| 1/13.76 | 3 | 5 | 72% | 35.5 | / | 2 |
| 1/19.22 |
| 1/26.83 |
| 1/51 | 4 | 6 | 65% | 43 | / | 3 |
| 1/71.3 |
| 1/100 |
| 1/130 |
Mechanical Dimension
Production Process
Strict Control Of Material
 |  |  |
| Gearbox | Material Storage | Split Riveting |
Production Equipment
 |  |  |
| CNC-1 | CNC-2 | Machining Center |
Large-scale Production
 |  |  |
| Servo Pipeline | Assembly Line | Automatic Assembly Line |
Strict Inspection
 |  |  |
| End Cover Bearing Inspection | Shaft Shape Check | Shape Inspection |
Bulk Shipment
Hetai Production Process
Certificate
 |  |  |
| Stepper motor ROHS report Date: June 09, 2021 | BLDC Motor ROHS report Date: June 09, 2021 | CE cetificate |
 |  |
| IATF 16949: 2016 Valid until: 02 June 2024 | ISO 9001: 2015 Valid until: 02 June 2024 |
Market Range
Why Choose us
We offer you:
Engineering Support
Our professional team can help you to find the right and suitable motor for you. Our engineers have rich experience of motion control products in various industries, such as robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment, and so on.
 |  |  |
| Find | Customise | Optimise |
| Our team can help you find most suitable motor for the application from o ur vast selection of motors | We can design and customise the performance and exterior for your pecific use or assembly | For OEM projects, we have over 15 years experience od solving different problems in various application. We improve our product together with our customer. |
Manufacturing Support
Regardless of the volume of the order, we will provide the same service. Our engineering team is able to provide you with quick and accurate prototypes based on your custom requirements.
 |  |  |
| Prototypes | Standard Batch | High Volume Batch |
| 1-10pcs | 500-5000pcs | over 5000pcs |
