Large Torque Hybrid Stepper Motor 60mm 6 Wires 1.8 Degree 11 Kg Cm 1nm 5.8v

Product Categories
Changzhou Hetai Motor And Electric Appliance Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

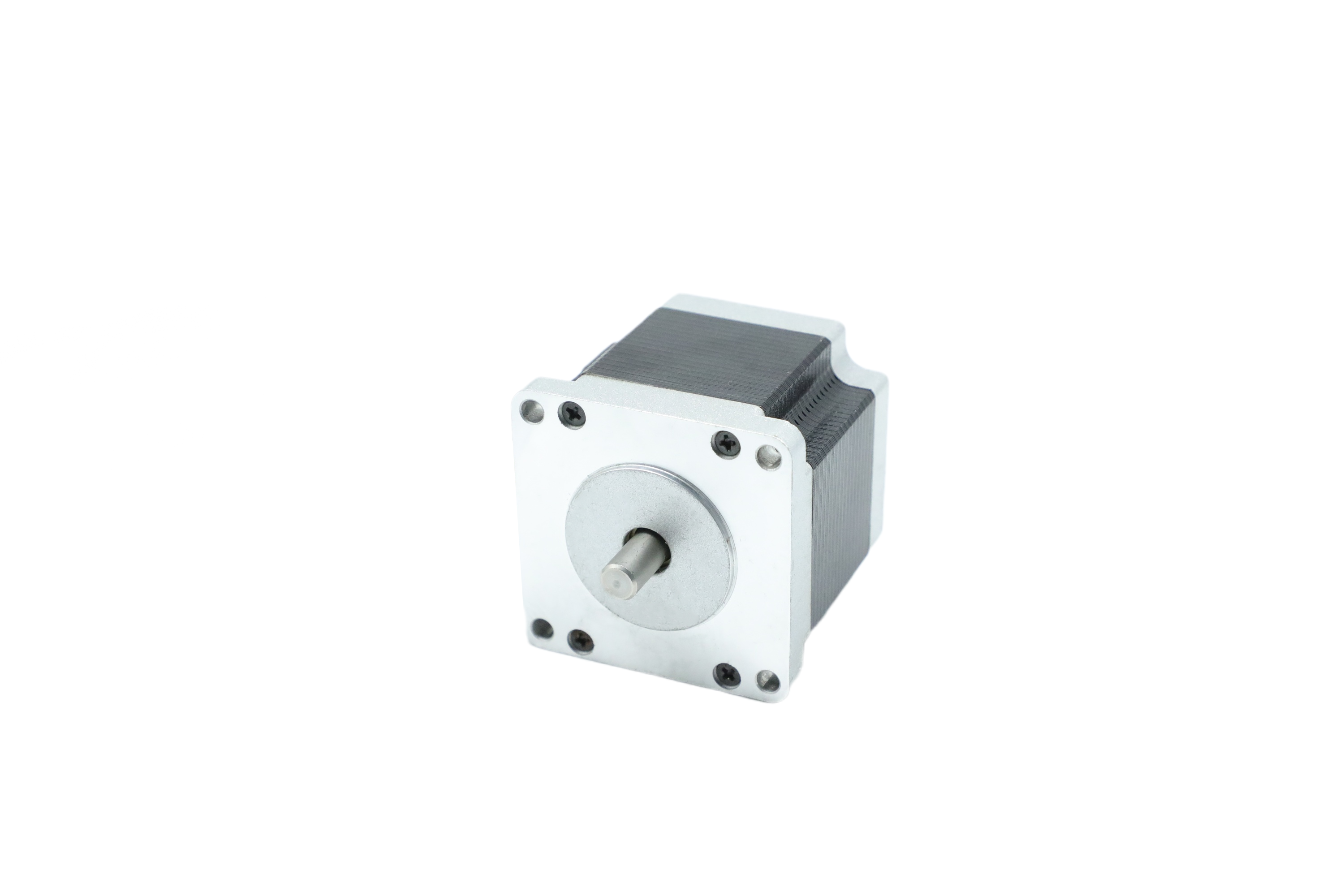

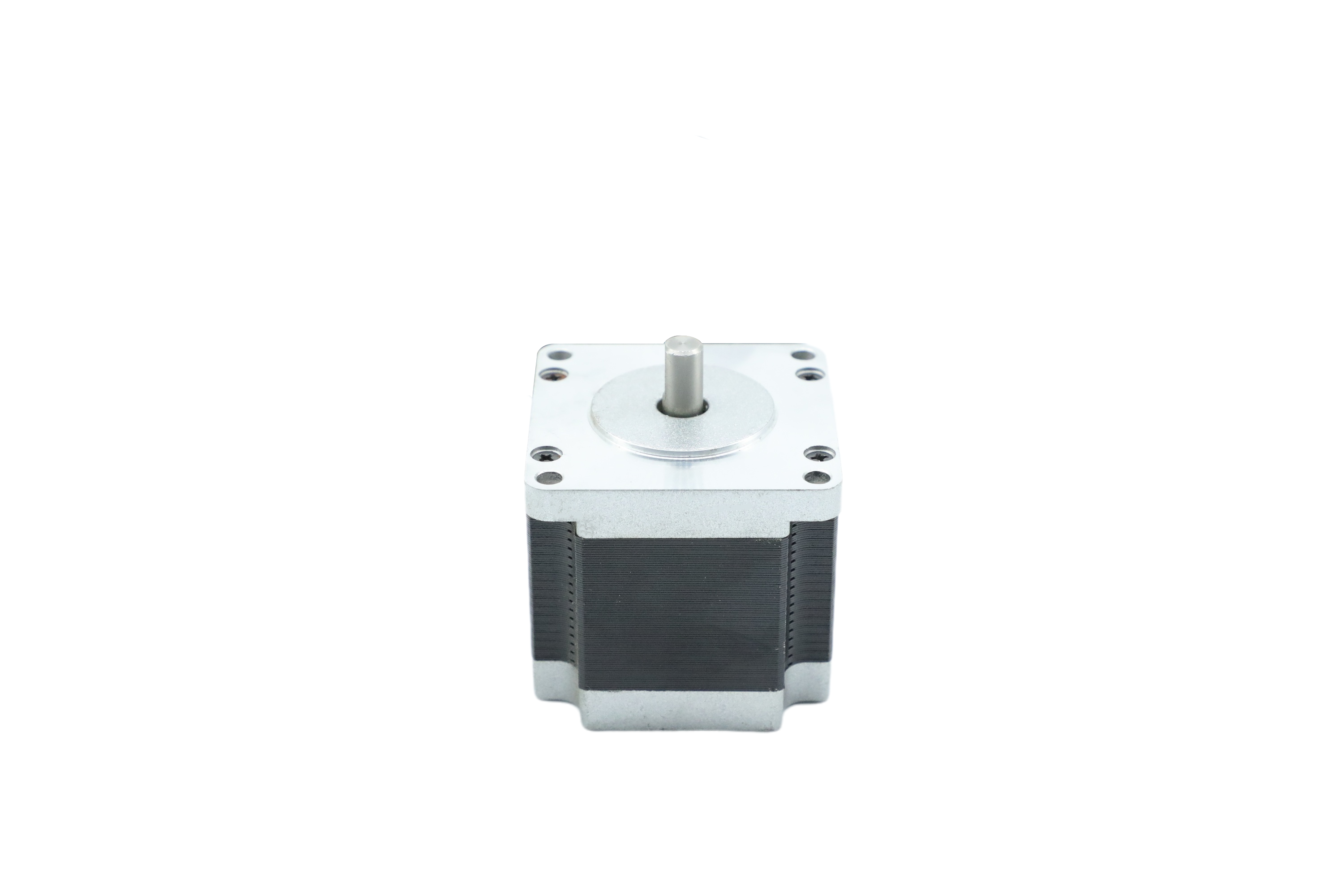

Large Torque Hybrid Stepper Motor 60mm 6 Wires 1.8 Degree 11 Kg Cm 1nm 5.8v

Brand Name : HeTai

Model Number : 60BYGH406-03

Certification : CE ROHS ISO

Place of Origin : China

MOQ : 50

Price : USD

Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 PCS/MONTH

Delivery Time : 25 DAYS

Packaging Details : Carton with Inner Foam Box, Pallet

Product name : Hybrid stepping motor

Step Accuracy : ± 5%

Inductance : 4.3 mH

Insulation Resistance : 100MΩ Min.500VC DC

Ambient Temperature : -20℃~+50℃

Temperature Rise : 80 ℃ Max

Dielectric Strength : 500VAC 1 minute

Max Radial Force : 75N (20mm from front flange)

Max Axial Force : 15N

Motor length : 56mm

Contact Now

60BYGH406-03 High Torque Output 1.8 Degree 11 Kg.cm Stepping Motor

As a stepper motor manufacturer who has over 20 years of expertise, Hetai is confident of abundant industrial experience serving customers who require stepper motors for application of robotics, packing, textile, medical, printing, and among many others. Please let us know your performance and operational requirements, such as size, load, torque, and other specifics. Then we can provide you more suitable solutions.

Electrical Specification

Model Number

60BYGH406-03

Step Accuracy

± 5%

Step Angle

1.8°

Lead Wire

6

Voltage (V)

5.8

Current (A/Phase)

1.8

Holding Torque (Kg.cm)

11

Resistance (Ω/phase)

3.2

Inductance (mH/phase)

4.3

Motor length (MM)

56

Motor Weight(Kg)

0.77

Insulation Class

B

*Products can be customized by special request.

Wiring Diagram

Large Torque Hybrid Stepper Motor 60mm 6 Wires 1.8 Degree 11 Kg Cm 1nm 5.8v

Mechanical Dimension

Large Torque Hybrid Stepper Motor 60mm 6 Wires 1.8 Degree 11 Kg Cm 1nm 5.8v
Specification of Other Models:
MODEL STEP ANGLE
(°/STEP)		 LEAD WIRE
(NO.)		 VOLTAGE
(V)		 CURRENT
(A/PHASE)		 RESISTANCE
(Ω/PHASE)		 INDUCTANCE
(MH/PHASE)		 HOLDING TORQUE
(KG.CM)		 MOTOR HEIGHT
L(MM)		 MOTOR WEIGHT
(KG)
60BYGH402-13A 1.8 6 2.4 3.0 0.8 1.6 10 56 0.77
60BYGH410-05A 1.8 4 6.0 1.0 6.0 16 12.5 56 0.77
60BYGH502-03A 1.8 4 5.32 1.4 3.8 10 12.5 64 1.00
60BYGH500 1.8 6 3.6 1.5 8.4 8.0 12.5 64 1.00
60BYGH805-56 1.8 4 2.8 4.0 0.8 3.5 23.5 87 1.34
60BYGH808A 1.8 4 4.5 3.0 1.5 5.0 26 87 1.34

*Products can be customized by special request.

*Products can match gearbox 52.56mm

Large Torque Hybrid Stepper Motor 60mm 6 Wires 1.8 Degree 11 Kg Cm 1nm 5.8v

Large Torque Hybrid Stepper Motor 60mm 6 Wires 1.8 Degree 11 Kg Cm 1nm 5.8v
