6 Lead Nema 23 3 Phase Hybrid Stepping Motor 0.6 Degree 0.7 NM 7 kgcm 2mH Dc 5.28V

Brand Name : HeTai

Model Number : 57BYGH350B-002

Certification : CE ROHS ISO

Place of Origin : China

MOQ : 50

Price : USD

Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 PCS/MONTH

Delivery Time : 25 DAYS

Packaging Details : Carton with Inner Foam Box, Pallet

Product name : Hybrid stepping motor

Step Accuracy : ± 5%

Insulation Resistance : 100MΩ Min.500VC DC

Ambient Temperature : -20℃~+50℃

IP level : IP40

Temperature Rise : 80 ℃ Max

Max Radial Force : 75N (20mm from front flange)

Max Axial Force : 15N

Dielectric Strength : 500VAC 1 minute

Voltage : 5.28V

Contact Now

57BYGH350B-002 0.6 Degree 3-phase 0.7 NM 2mH micro DC Nema 23 stepper motor

57BYGH350 series is a type of 3 phase stepper motor, the step angle can be made as 0.6°or 1.2°. The lead wire number is 6. It has a high torque output of 0.7 Nm. To compare with 2 phase 1.8 degree stepper motor, 3 phase motor is more stable & smooth in performance and operation. In addition, the three phase stepper motor need a special driver made especially for 3 phase.

Electrical Specification
Model Number
 57BYGH350B-002
Step Accuracy
± 5%
Step Angle
0.6°/1.2°
Lead Wire
 6
Voltage (V)
5.28
Current (A/Phase)
2.4
Holding Torque (N.m)
0.7
Resistance (Ω/phase) 2.2
Inductance (mH/phase) 2
Motor length (MM) 56
Motor Weight(Kg) 0.75
Insulation Class B

*Products can be customized by special request.

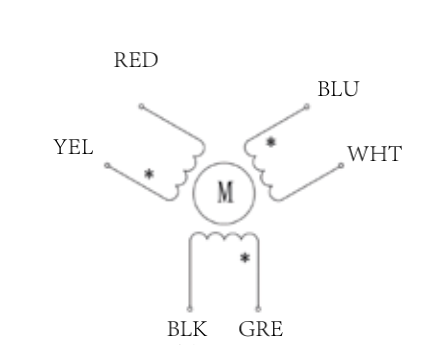

Wiring Diagram

6 Lead Nema 23 3 Phase Hybrid Stepping Motor 0.6 Degree 0.7 NM 7 kgcm 2mH Dc 5.28V
Mechanical Dimension
6 Lead Nema 23 3 Phase Hybrid Stepping Motor 0.6 Degree 0.7 NM 7 kgcm 2mH Dc 5.28V
MODEL STEP ANGLE
(°/STEP)		 LEAD WIRE
(NO.)		 VOLTAGE
(V)		 CURRENT
(A/PHASE)		 RESISTANCE
(Ω/PHASE)		 INDUCTANCE
(MH/PHASE)		 HOLDING TORQUE
(KG.CM)		 MOTOR HEIGHT
L(MM)		 MOTOR WEIGHT
(KG)
57BYGH350A-001 1.2 6 3.12 2.4 3.4 4.0 4.0 41 0.45
57BYGH350A-002 1.2 3 5.0 0.5 10 16 2.0 41 0.45
57BYGH350B-001 1.2 3 2.52 5.6 0.45 1.1 9.0 56 0.69
57BYGH350B-002 1.2 6 5.28 2.4 2.2 2 7.0 56 0.75
57BYGH350C-001-09 1.2 3 2.6 5.2 0.5 1.4 12 76 1.05
57BYGH350C-005-01 1.2 3 9.0 1.0 9.0 21 9 76 1.10

*Products can be customized by special request.

*Can match with gearbox 42, 52, 56

Hetai is also proud of its research and development strength. With the support of professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.

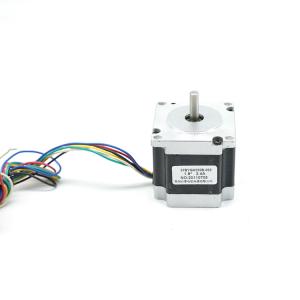

6 Lead Nema 23 3 Phase Hybrid Stepping Motor 0.6 Degree 0.7 NM 7 kgcm 2mH Dc 5.28V6 Lead Nema 23 3 Phase Hybrid Stepping Motor 0.6 Degree 0.7 NM 7 kgcm 2mH Dc 5.28V6 Lead Nema 23 3 Phase Hybrid Stepping Motor 0.6 Degree 0.7 NM 7 kgcm 2mH Dc 5.28V
