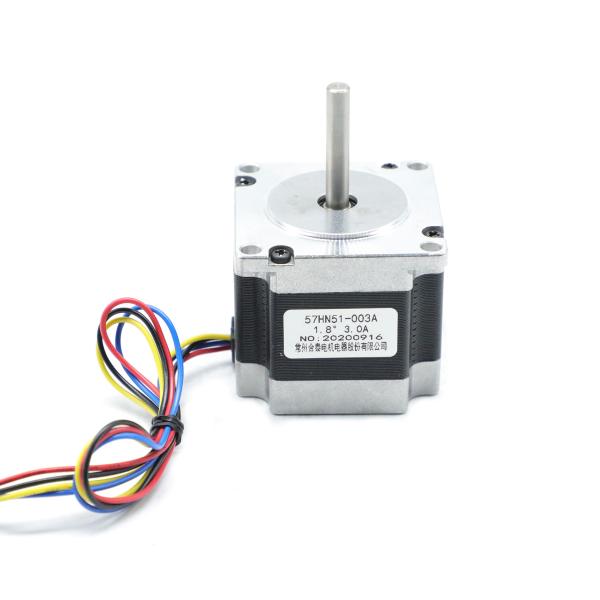

Mini Nema 23 57mm High Torque Stepper Motors 0.95nm 3 Oz In 57HN51 003A

Brand Name : HeTai

Model Number : 57HN51-003A

Certification : CE ROHS ISO

Place of Origin : China

MOQ : 50

Price : USD

Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 PCS/MONTH

Delivery Time : 25 DAYS

Packaging Details : Carton with Inner Foam Box, Pallet

Product name : Hybrid stepping motor

Step Accuracy : ± 5%

Motr Weight : 0.63kg

Insulation Resistance : 100MΩ Min.500VC DC

Ambient Temperature : -20℃~+50℃

Temperature Rise : 80 ℃ Max

Motor length : 51mm

Dielectric Strength : 500VAC 1 minute

Max Radial Force : 75N (20mm from front flange)

Max Axial Force : 15N

Contact Now

57HN51-003A 1.8 Degree Nema23 Stepper Motor High Torque Mini Nema23 Motor Stepper

Applications of Stepper Motors

-3D printing equipment.

-Textile machines.

-Printing presses.

-Gaming machines.

-Medical imaging machinery.

-Small robotics.

-CNC milling machines.

-Welding equipment.

Electrical Specification:

Model Number
 57HN51-003A
Step Accuracy
± 5%
Step Angle
1.8°
Lead Wire
 4
Voltage (V)
1.5
Current (A/Phase)
3
Holding Torque (N.m)
0.95
Resistance (Ω/phase) 0.5
Inductance (mH/phase) 1.4
Motor length (MM) 51
Motr Weight(K/g) 0.63
Insulation Class B

*Products can be customized by special request.

Wiring Diagram
Mini Nema 23 57mm High Torque Stepper Motors 0.95nm 3 Oz In 57HN51 003A
Mechanical Dimension
Mini Nema 23 57mm High Torque Stepper Motors 0.95nm 3 Oz In 57HN51 003A
Specification of Other Models:

MODEL

STEP ANGLE
(°/STEP)

LEAD WIRE
(NO.)

VOLTAGE
(V)

CURRENT
(A/PHASE)

RESISTANCE
(Ω/PHASE)

INDUCTANCE
(MH/PHASE)

HOLDING TORQUE
(KG.CM)

MOTOR HEIGHT
L(MM)

MOTOR WEIGHT
(KG)

57HN41-001-01

1.8

4

2.1

4.2

0.5

1.4

9.5

41

0.43

57HN41-003-04

1.8

4

7.0

1.0

7.0

14.7

9.0

41

0.43

57HN46-005A

1.8

4

2.3

4.2

0.55

1.5

10.6

46

0.54

57HN46-003A

1.8

4

8.2

1.0

8.2

18

10.5

46

0.54

57HN51-003A

1.8

4

1.5

3.0

0.5

1.4

9.5

51

0.63

57HN51-005

1.8

4

4.0

2.0

2.0

6.5

12

51

0.63

57HN56-002

1.8

4

9.0

2.5

3.6

11

15

56

0.68

57HN56-005-02

1.8

4

6.8

1.0

6.8

24

12

56

0.68

57HN67-001-15

1.8

4

5.76

1.6

3.6

12

19

67

0.70

57HN67-004-07

1.8

4

1.5

3.0

0.5

1.8

14

67

0.70

*Products can be customized by special request.

*Produdts can match gearbox 42.52.56

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.
