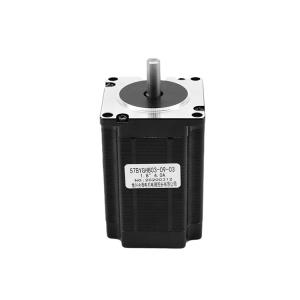

57BYGH803-09-03 High Quality 1.8 Degree Customizable CE ROHS ISO Stepper Motor
The Industrial applications of stepping motor include high speed pick and place equipment and multi-axis CNC machines, often directly driving lead screws or ballscrews. In the field of optics they are frequently used in precision positioning equipment such as linear actuators, linear stages, rotation stages, goniometers, and mirror mounts. Other uses are in packaging machinery, and positioning of valve pilot stages for fluid control systems. Commercially, stepper motors are used in floppy disk drives, flatbed scanners, computer printers, plotters, slot machines, image scanners, compact disc drives and many more devices
Electrical Specification:
| Model Number | 57BYGH803-09-03 |
| Step Accuracy | ± 5% |
| Step Angle | 1.8° |
| Lead Wire | 4 |
| Voltage (V) | 3.2 |
| Current (A/Phase) | 4 |
| Holding Torque (N.m) | 1.8 |
| Resistance (Ω/phase) | 1.1 |
| Inductance (mH/phase) | 2.5 |
| Motor length (MM) | 84 |
| Motr Weight(K/g) | 1.13 |
| Insulation Class | B |
*Products can be customized by special request.
Wiring Diagram
Mechanical Dimension
Specification of Other Models:
| MODEL | STEP ANGLE
(°/STEP) | LEAD WIRE
(NO.) | VOLTAGE
(V) | CURRENT
(A/PHASE) | RESISTANCE
(Ω/PHASE) | INDUCTANCE
(MH/PHASE) | HOLDING TORQUE
(KG.CM) | MOTOR HEIGHT
L(MM) | MOTOR WEIGHT
(KG) |
| 57BYGH001A | 1.8 | 4 | 6.0 | 0.5 | 12 | 20 | 3.5 | 41 | 0.45 |
| 57BYGH048-11 | 1.8 | 4 | 4.4 | 2.0 | 2.2 | 5.0 | 6.0 | 41 | 0.45 |
| 57BYGH201-22A | 1.8 | 4 | 6.6 | 0.6 | 11 | 25 | 7.0 | 51 | 0.65 |
| 57BYGH218-45 | 1.8 | 4 | 2.6 | 2.0 | 1.3 | 4 | 8.0 | 51 | 0.65 |
| 57BYGH420-77 | 1.8 | 6 | 3.8 | 2.0 | 1.9 | 3.5 | 9.0 | 56 | 0.70 |
| 57BYGH432-63A | 1.8 | 6 | 2.4 | 3.0 | 0.8 | 1.2 | 9.0 | 56 | 0.70 |
| 57BYGH633-131 | 1.8 | 6 | 3.0 | 3.0 | 1.0 | 1.8 | 13.5 | 78 | 1.00 |
| 57BYGH639-10E | 1.8 | 4 | 2.1 | 4.2 | 0.5 | 1.6 | 18 | 78 | 1.13 |
| 57BYGH801-01 | 1.8 | 6 | 3.3 | 3.0 | 1.1 | 2.5 | 16 | 84 | 1.13 |
| 57BYGH815 | 1.8 | 4 | 7.36 | 1.6 | 4.6 | 16 | 20 | 84 | 1.13 |
*Products can be customized by special request.
*Can match with gearbox 42, 52, 56
