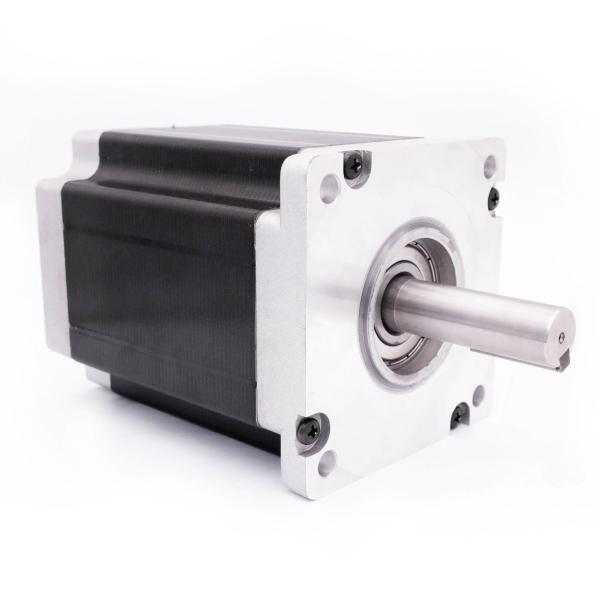

110BYGH 1.8°Direct Current Machine High Torque Output 4.95 Voltage Customizable Stepper Motor
The stepper motor working principle is Electro-Magnetism. It includes a rotor which is made with a permanent magnet whereas a stator is with electromagnets. Once the supply is provided to the winding of the stator then the magnetic field will be developed within the stator. Now rotor in the motor will start to move with the rotating magnetic field of the stator. So this is the fundamental working principle of this motor
Electrical Specification:
| MODEL | STEP ANGLE
(°/STEP) | LEAD WIRE
(NO.) | VOLTAGE
(V) | CURRENT
(A/PHASE) | RESISTANCE
(Ω/PHASE) | INDUCTANCE
(MH/PHASE) | HOLDING TORQUE
(N.M) | MOTOR HEIGHT
L(MM) | MOTOR WEIGHT
(KG) |
| 110BYGH80-001AG | 1.8 | 4 | 9.0 | 6.0 | 1.5 | 14.0 | 8.5 | 80 | 5.0 |
| 110BYGH99-001-10 | 1.8 | 4 | 4.95 | 5.5 | 0.9 | 12.0 | 11.2 | 99 | 5.0 |
| 110BYGH150-001 | 1.8 | 4 | 5.44 | 6.8 | 0.8 | 12.0 | 21 | 150 | 8.4 |
| 110BYGH165-001-03 | 1.8 | 4 | 4.80 | 6.0 | 0.8 | 14.0 | 24 | 165 | 9.5 |
| 110BYGH201-001 | 1.8 | 4 | 5.36 | 8.0 | 0.76 | 16.0 | 30 | 201 | 12.0 |
*Products can be customized by special request.

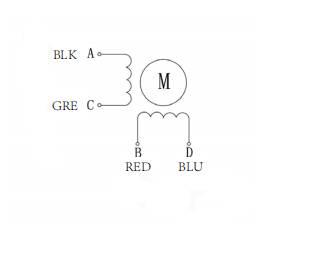

Wiring Diagram

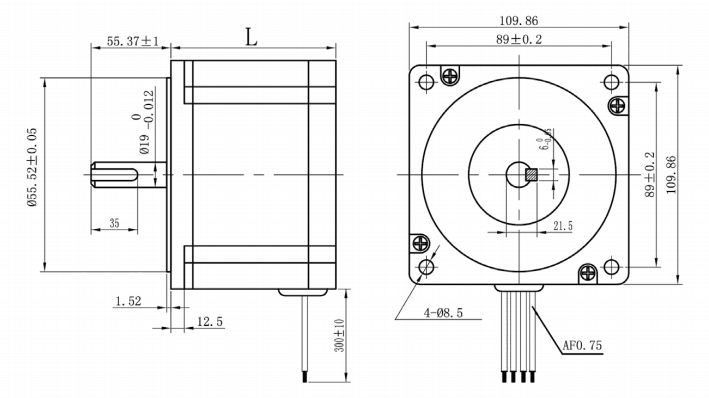

Mechanical Dimension
Based on all these advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors, and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia, and all-around China.
FAQ
1. Are you a factory?
Yes, we are a factory. Our brand name Hetai is a well-known micro motor manufacturer for more than 20 years in
China. Main products including hybrid stepper motor, brushless DC motor, servo motor, and planetary gearbox.
2. Can I test the sample?
Yes, samples and freight are charged.
3. Can I get a Customized product?
Sure, all the products can be customized based on special requests.
4. How do you ship the goods?
We normally ship goods by express(DHL/UPS/FEDEX/TNT), by sea and by air, also accept freight forwarder.
5. What are the payment terms?
T/T(bank transfer), Paypal(0.5% paypal charges), ALIBABA assurance order accept
6. Is this your final price? May I have the discount?
Our price is the factory price. If you have a large quantity, we can negotiate about the discount.
7. What is the Warranty for your products?
Our warranty is for one year. If any quality problems occurred on our side during this period, we will take on the shipping cost and replacement. please note damage caused by improper use of the product is not covered by the warranty.
