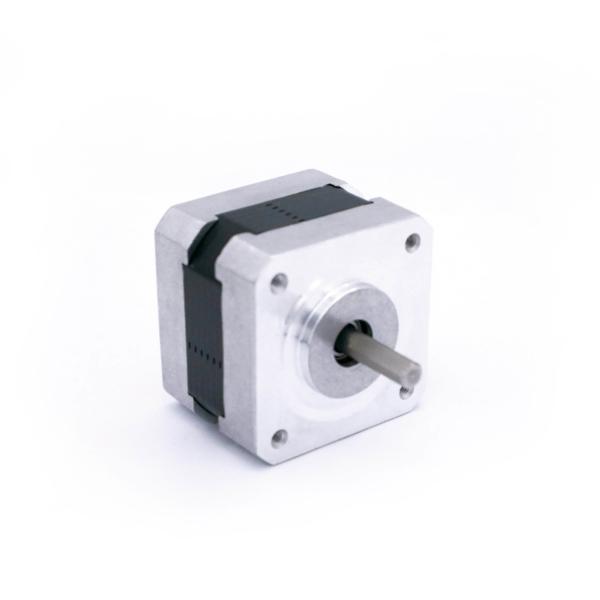

Nema 17 42BYGH Stepper Motor 6 Leads 1.8

Brand Name : HeTai

Model Number : 42BYGH

Certification : CE ROHS ISO

Place of Origin : China

MOQ : 50

Price : USD

Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 PCS/MONTH

Delivery Time : 25 DAYS

Packaging Details : Carton with Inner Foam Box, Pallet

Product name : Hybrid stepping motor

Step Accuracy : ± 5%

Temperature Rise : 80 ℃ Max

Insulation Resistance : 100MΩ Min.500VC DC

Ambient Temperature : -20℃~+50℃

Dielectric Strength : 500VAC 1 minute

Max Radial Force : 28N (20mm from front flange)

Max Axial Force : 10N

Contact Now

42BYGH series NEMA 17 high-quality stable performance stepper motor 1.8 degrees 4 or 6 leads

The Industrial applications of stepping motor include high-speed pick and place equipment and multi-axis CNC machines, often directly driving lead screws or ballscrews. In the field of optics, they are frequently used in precision positioning equipment such as linear actuators, linear stages, rotation stages, goniometers, and mirror mounts. Other uses are in packaging machinery, and positioning of valve pilot stages for fluid control systems. Commercially, stepper motors are used in floppy disk drives, flatbed scanners, computer printers, plotters, slot machines, image scanners, compact disc drives and many more devices

Electrical Specification

MODEL STEP ANGLE
(°/STEP)		 LEAD WIRE
(NO.)		 VOLTAGE
(V)		 CURRENT
(A/PHASE)		 RESISTANCE
(Ω/PHASE)		 INDUCTANCE
(MH/PHASE)		 HOLDING TORQUE
(G.CM)		 MOTOR HEIGHT
L(MM)		 MOTOR WEIGHT
(KG)
42BYGH208-52A 1.8 4 12 0.4 30 42 2500 34 0.20
42BYGH243-03 1.8 4 2.6 1 2.6 3.2 1800 34 0.20
42BYGH622-28A 1.8 4 4.8 1 4.8 6.0 2900 40 0.24
42BYGH613-68A 1.8 4 2.5 1.7 1.5 2.5 3500 40 0.24
42BYGH705-07 1.8 4 12 0.3 40 80 4000 44 0.30
42BYGH721A 1.8 6 10 0.25 40 36 2000 44 0.30
42BYGH801-36 1.8 6 12 0.4 30 22 3800 48 0.34
42BYGH872A 1.8 4 2.8 1.7 1.65 2.8 4500 48 0.34
42BYGH910-02 1.8 4 5.1 1.5 3.4 8.0 8500 60 0.49
42BYGH905-13 1.8 4 3.15 1.5 2.1 5.0 6800 60 0.49

*Products can be customized by special request.

*Products can match gearbox 36.42 mm

Wiring Diagram
Nema 17 42BYGH Stepper Motor 6 Leads 1.8
*Mechanical Dimension
Nema 17 42BYGH Stepper Motor 6 Leads 1.8
