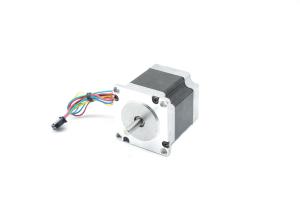

4.2A 4 Leads Hybrid Stepper Motor 9.5KG CM 57HN41-001-01

Name: 42A 4 Leads Hybrid Stepper Motor 95KG CM 57HN4100101
Brand: HeTai
Price: 1 USD

Quality 4.2A 4 Leads Hybrid Stepper Motor 9.5KG CM 57HN41-001-01 wholesale

Brand Name : HeTai

Model Number : 57HN

Certification : CE ROHS ISO

Place of Origin : China

MOQ : 50

Price : USD

Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 PCS/MONTH

Delivery Time : 25 DAYS

Packaging Details : Carton with Inner Foam Box, Pallet

Product name : Hybrid stepping motor

Step Accuracy : ± 5%

Temperature Rise : 80 ℃ Max

Insulation Resistance : 100MΩ Min.500VC DC

Ambient Temperature : -20℃~+50℃

Dielectric Strength : 500VAC 1 minute

Max Radial Force : 75N (20mm from front flange)

Max Axial Force : 15N

Contact Now

57HN41-001-01 4 Leads 4.2A Stable Performance Standard Hybrid Stepping Motor

A stepper motor is an electric motor whose main feature is that its shaft rotates by performing steps, that is, by moving by a fixed amount of degrees. This feature is obtained thanks to the internal structure of the motor and allows to know the exact angular position of the shaft by simply counting how many steps have been performed, with no need for a sensor. This feature also makes it fit for a wide range of applications.

Electrical Specification

MODEL	STEP ANGLE (°/STEP)	LEAD WIRE (NO.)	VOLTAGE (V)	CURRENT (A/PHASE)	RESISTANCE (Ω/PHASE)	INDUCTANCE (MH/PHASE)	HOLDING TORQUE (KG.CM)	MOTOR HEIGHT L(MM)	MOTOR WEIGHT (KG)
57HN41-001-01	1.8	4	2.1	4.2	0.5	1.4	9.5	41	0.43
57HN41-003-04	1.8	4	7.0	1.0	7.0	14.7	9.0	41	0.43

*Products can be customized by special request.

Wiring Diagram

4.2A 4 Leads Hybrid Stepper Motor 9.5KG CM 57HN41-001-01

Mechanical Dimension

Applications of Stepper Motors

3D printing equipment.
Textile machines.
Printing presses.
Gaming machines.
Medical imaging machinery.
Small robotics.
CNC milling machines.
Welding equipment.
