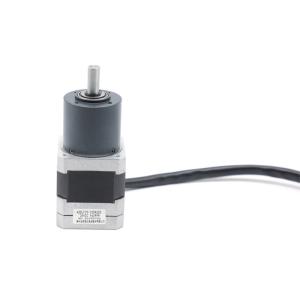

42mm Gearbox Brushless Motor 160 Rpm High Torque 1.13 NM 24v

Name: 42mm Gearbox Brushless Motor 160 Rpm High Torque 113 NM 24v
Brand: Hetai
Price: 1 USD

Quality 42mm Gearbox Brushless Motor 160 Rpm High Torque 1.13 NM 24v wholesale

Brand Name : Hetai

Model Number : 42BLF01-035AG25

Certification : CE ROHS ISO

Place of Origin : China

MOQ : 50

Price : USD

Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000pcs/month

Delivery Time : 28-31

Packaging Details : Carton with Inner Foam Box, Pallet

Product Name : Brushless gearbox motor

Winding Type : Star

Hall effect angle : 120° Electrical angle

Insulation Class : B

Ambient Temperature : -20℃~+50℃

Insulation Resistance : 100MΩ Min.500VC DC

Dielectric Strength : 600VAC 1 minute

Radial load(10mm from flange) : ≤120

Shaft axial load : ≤80N

Protection Level : IP40

Contact Now

High torque 1.13 N.m high-efficiency planetary gearbox motor BLDC 160 rpm

Resistance --------------- 2.2OHMS

Shaft axial load--------------- ≤80N

Radial load(10mm from flange)--------------- ≤120N

Ambient Temperature--------------- -20℃~+50℃

Insulation Resistance --------------- 100MΩ Min.500VC DC

Model	Reduction Ratio	Gearbox Housing Material	Torque (Nm)	Voltage(V)	Power(W)	Speed(RPM)
42BLF01-023AG13	13:1	Powder metallurgy	0.66	24	21	308
42BLF01-027AG16	16:1	Powder metallurgy	0.7	24	18	250
42BLF01-035AG25	25:1	Powder metallurgy	1.13	24	19	160
42BLF01-036AG53	53:1	Powder metallurgy	2.17	24	17	75

Electrical Specification:

		Model
Manufacture Model		42BLF01-035AG25
Number Of Phases	Phase	3
Number Of Poles	Poles	8
Nominal Voltage	VDC	24
No Load Speed	RPM	5000±10%
No Load Current	Amps	0.5
Rated Speed	Rpm	4000±10%
Rated Torque	N.m	0.063
Torque Constant	N.m/A	0.046
Back EMF constant	V/kRPM	4.8
Body Length	mm	47
Weight	Kg	0.30
MOTOR SPECIFICATIONS WITH PLANETARY GEAR
Rated Torque	N.m	1.13
Rated Speed	Rpm	160±10%
Output Power	W	19
RATIO		25:1

*Products can be customized by special request.

Wiring Diagram

FUNCTION	COLOR
+5V	RED	UL1007 26AWG
HALL A	YELLOW
HALLB	GREEN
HALLC	BLUE
GND	BLACK
PHASE A	YELLOW	UL3265 22AWG
PHASE B	GREEN
PHASE C	BLUE

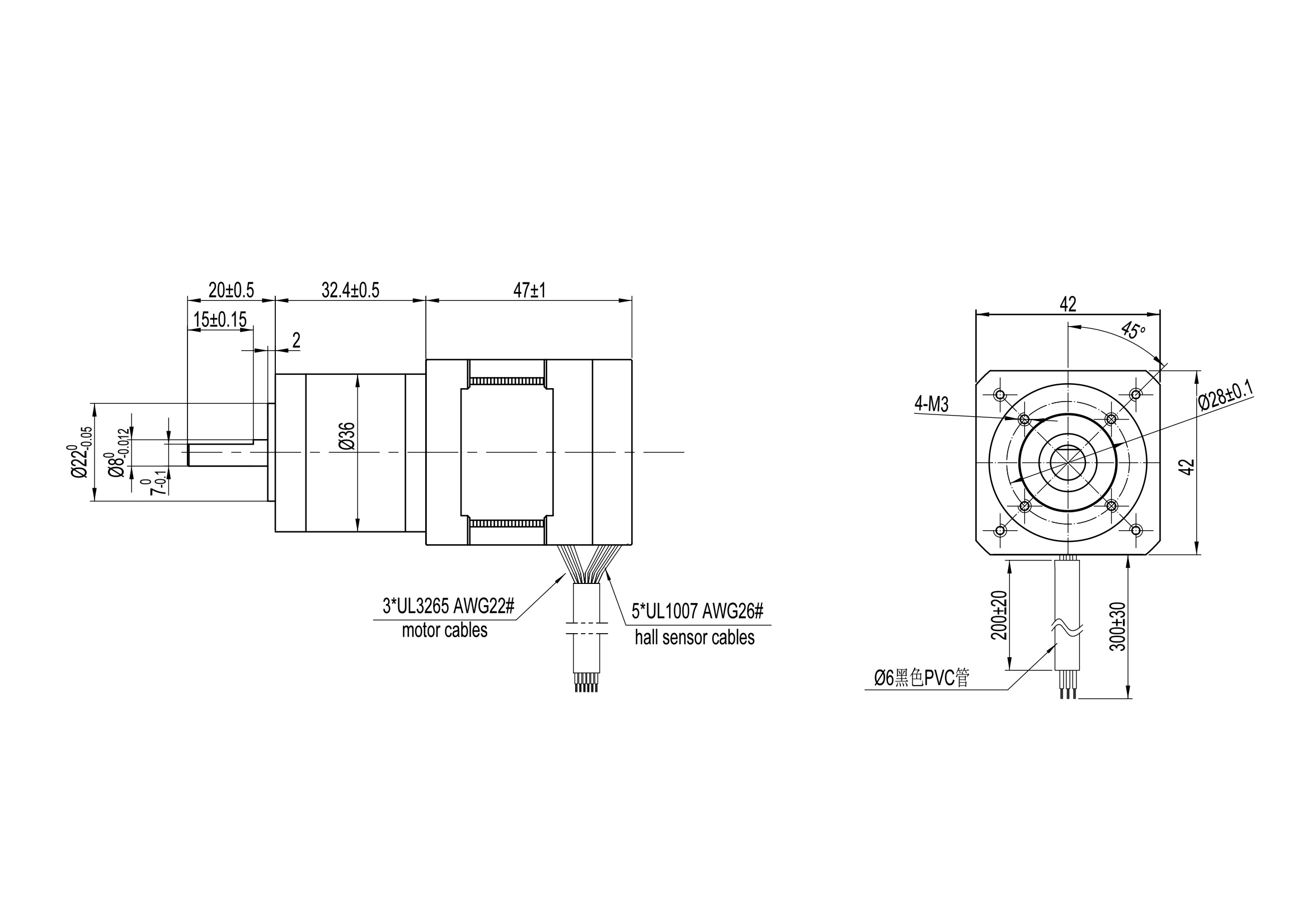

Mechanical Dimension

42mm Gearbox Brushless Motor 160 Rpm High Torque 1.13 NM 24v

GEARBOX PART Electrical Specification:

36mm Powder metallurgy

Housing material	Bearing at output	Radial load(10mm from flange)N	Shaft axial load(N)	Shaft press-fit force max(N)	Radial play of shaft(mm)	Thrust play of shaft(mm)	Backlash at no-load (°)
Powder metallurgy	sleeve bearings	≤120	≤80	≤500	≤0.03	≤0.1	≤1.5

Reduction ratio	Rated tolerance torque (Nm)	Max momentary tolerance torque (Nm)	Efficiency%	Length (mm)	Weight(g)	Number of gear trains
1/4	0.3	1.0	81%	24.8	145	1
1/5
1/16	1.2	3.5	72%	32.4	173	2
1/20
1/25
1/53	2.5	7.5	65%	41.9	213	3
1/62
1/76
1/94
1/117

The advantage of BLDC planetary gearbox motor

-Long lifespan

-Low noise

-High torque

-High efficiency
