Product Description:
With a diameter of 20 mm and a length of 29.9 mm, the 20BYGH series hybrid stepper motor is ideal for applications where space is limited.
The motor has a resistance of 3.5Ω/phase and delivers 0.6A/phase current. The hybrid stepper motor has insulation class B, which means it can operate in temperatures up to 130°C.
Whether you're looking for a motor for a robotics project, CNC machine tool, 3D printer, or other application, the Hybrid Stepper Motor is the perfect choice.
Its high torque, high precision and high efficiency make it a popular choice for engineers and hobbyists alike. This 20BYGH motor series is therefore a versatile and reliable motor that is ideal for a variety of applications.
Its hybrid design combines the best features of both types of permanent magnet motors and variable reluctance motors to deliver high torque, high precision and high efficiency.

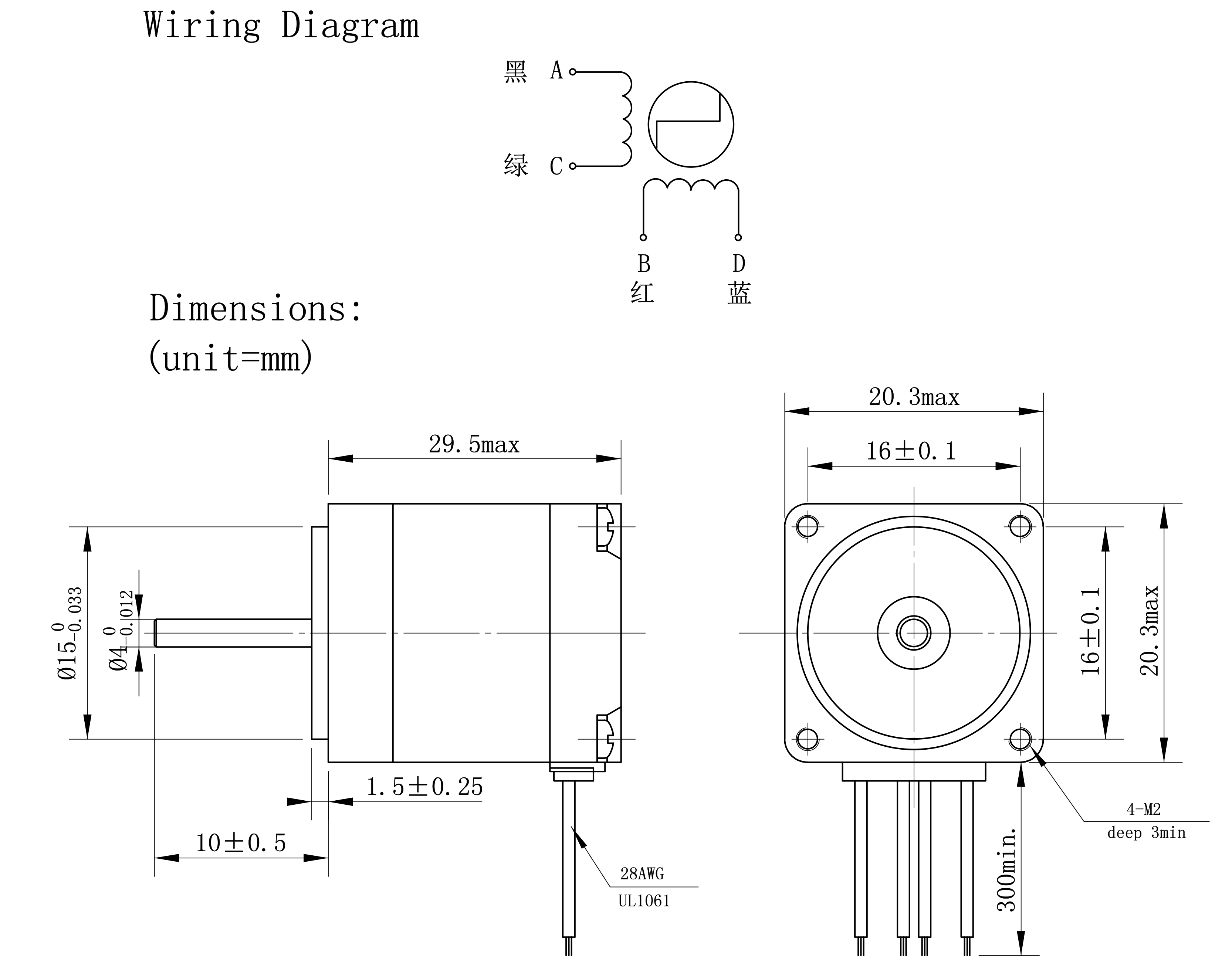

Data drawing parameters:
| DATA PARAMETER | 20BYGH101-GGS | 20BYGH301-GGS | 20BYGH501-GGS |
| STEP ANGLE °/step | 1.8 | 1.8 | 1.8 |
| RATED VOLTAGE V | 2.1 | 2.6 | 3.84 |
| CURRENT A/phase | 0.6 | 0.5 | 0.6 |
| RESISTANCE Ω/phase | 3.5 | 5.2 | 6.4 |
| INDUCTANCE mH/phase | 0.1 | 1.8 | 2.4 |
| HOLDING TORQUE g.cm | 100 | 180 | 180 |
| INSULATION CLASS | B | B | B |
| length MM | 29.9 | 39.5 | 46.8 |
Applications:
Stepper motors are widely used in various fields, including:
control of drug delivery pumps, precision surgical instruments, and positioning systems in imaging devices.
1. Industrial Automation: They are used to control conveyors, valves, doors, injection molding machines, packaging machinery, and other equipment to achieve high-precision motion control and automation in production.
2. Precision Instruments: Widely applied in laboratory equipment, optical devices, and measuring 1. Medical Devices: They are extensively utilized in medical devices for precise instruments to achieve precise motion control and positioning.
3. Consumer Electronics: Stepper motors are employed in automatic focusing cameras, 3D printers, precision electronic regulators, and small household robots among other consumer electronics products.
4. Automotive and Aerospace: They are used to control engine valves in automobiles, precise control systems in aerospace components, and servos in aircraft and drones.
5. Robotics: Stepper motors find wide applications in various types of robots, including industrial robots, service robots, and medical robots, for precise motion and position control.
These are just a few examples of stepper motor applications. Their high precision, reliability, and flexibility make them an indispensable part of many industries. More applications and functions await exploration!
